DESCRIPTION

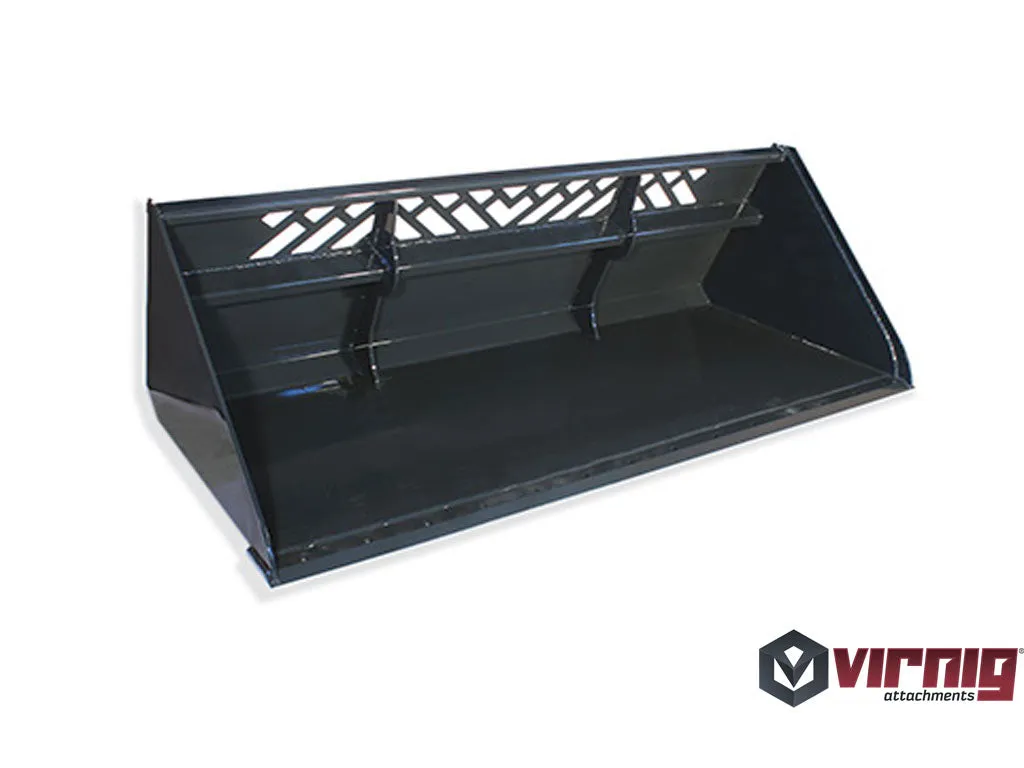

The Virnig V50 Snow/Light Material bucket is deeper, taller and stronger than the V40 bucket.- High capacity design allows large volumes of light material to be hauled per load.
- Windows in bucket to increase cutting edge visibility.
- Two 3/8” thick vertical braces and large upper cross member inside the bucket make for reinforcement.
- High-strength, 3/4” x 6” weld-on edge with pre-drilled holes for optional edges.
- Manufactured with a universal mount to fit most skid steer loaders.
- V60 Snow Bucket also available
OPTIONS

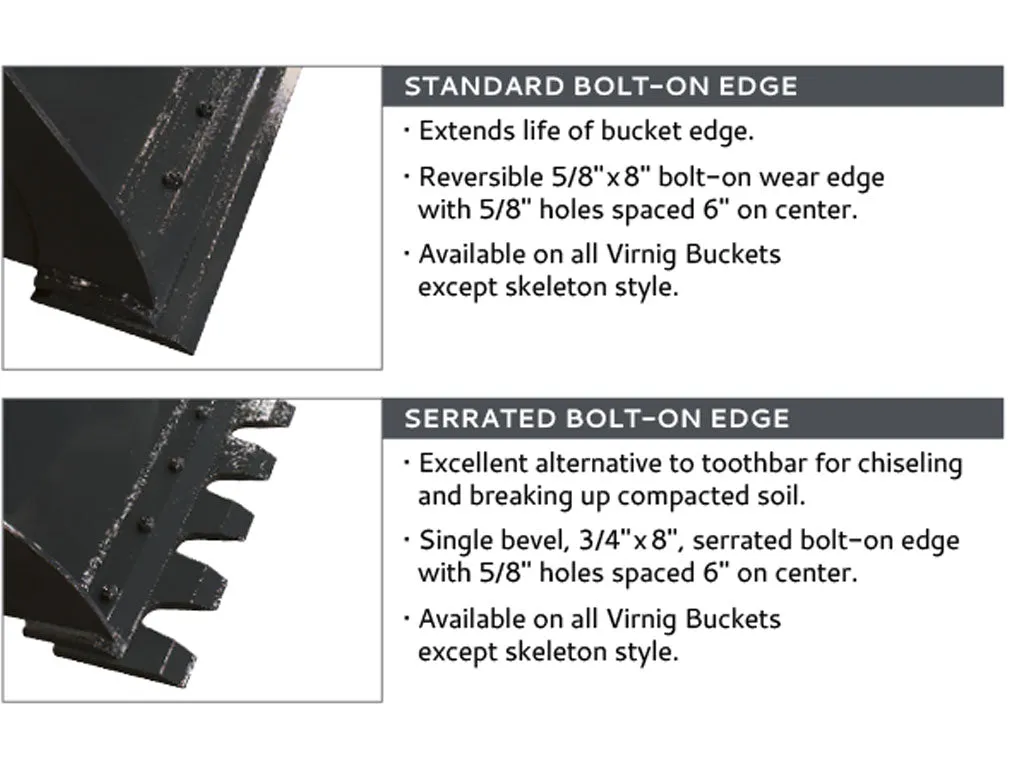

- Bolt on Cutting Edge (BOCE) installed
- Extends life of bucket.
- Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
- Serrated Edge (SE) installed
- Excellent alternative to toothbar for chiseling and breaking up soil.
- Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
SPECIFICATIONS
| Model | MSHV 72 | MSHV 78 | MSHV 84 | MSHV 96 | MSHV 101 |
| Overall Bucket Width (Inches) | 73.5 | 79.5 | 85.5 | 97.5 | 101.5 |
| Bucket Depth (Inches) | 40.6 | ||||
| Bucket Height (Inches) | 29.8 | ||||
| Window Height (Inches) | 8.0 | ||||
| Struck Capacity (Cubic Feet) | 26.6 | 28.8 | 31.0 | 35.5 | 37.0 |
| Heaped Capacity (Cubic Feet) | 31.9 | 34.6 | 37.2 | 42.6 | 44.5 |
| Bucket Back Angle (Degrees) | 66 | ||||
| Shell Thickness (Inches) | 0.19 | ||||
| Side Plate Thickness (Inches) | 0.25 | ||||
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 3 | 5 | 5 | 5 | 5 |
| Approximate Weight (Pounds) | 660 | 730 | 765 | 830 | 850 |
| Recommended Loader Capacity | Greater than 1800 pounds | ||||
